Stand All-in-one Energy Storage System 11kW 51.2V 314Ah
video
Stand All-in-one Energy Storage System 11kW 51.2V 314Ah

Stand All-in-one Energy Storage System 11kW 51.2V 314Ah

Stand All-in-one Energy Storage System SSH-3.5kW 51.2V 150Ah; 6kW 51.2V 200Ah; 11kW 51.2V 314Ah. SSH series is a multifunctional, enhanced PV,industrial-grade integrated energy storage inverter,suitable for scenarios that require maximizing solar energy utilization, free switching between on-grid and off-grid modes, electricity selling and metering, and independent PV power generation and storage in harsh environments

Send Inquiry
Add To Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction



Stand All-in-one Energy Storage System SSH-3.5kW 51.2V 150Ah; 6kW 51.2V 200Ah; 11kW 51.2V 314Ah. SSH series is a multifunctional, enhanced PV,industrial-grade integrated energy storage inverter,suitable for scenarios that require maximizing solar
energy utilization, free switching between on-grid and off-grid modes, electricity selling and metering, and independent PV power generation and storage in harsh environments.

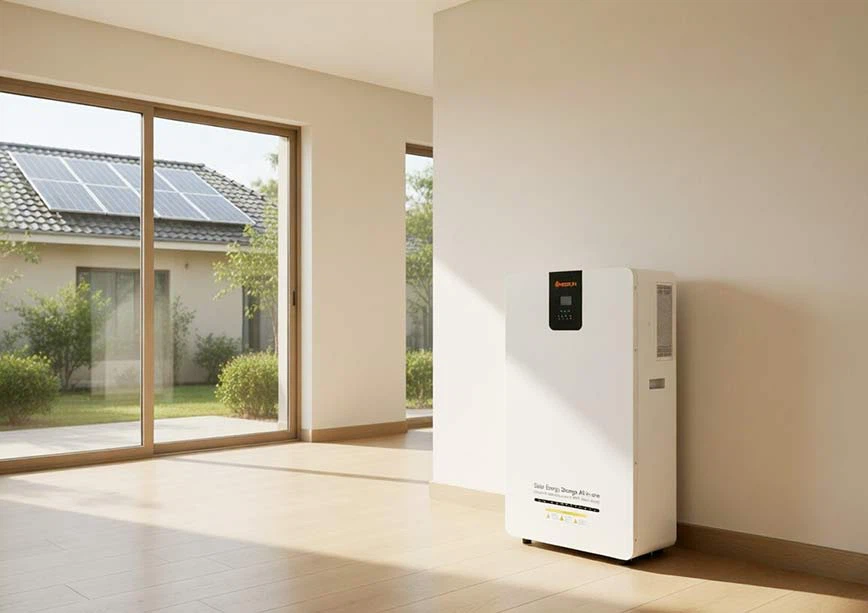

product-868-613



⚫ PV oversizing for enhanced efficiency, maximizing returns
⚫ Smart PV-grid complementarity, zero PV waste
⚫ Seamless on/off-grid switching for high power reliability
⚫ Dual battery modes for profit, transforming assets into income
⚫ Transparent power usage management, meticulous calculation of every kWh
⚫ Industrial-grade reliability, worry-free in harsh environments
⚫ UPS Function: Transfer 20ms or10ms Optional.
⚫ Multiple Working Mode: Photovoltaic/ Battery/AC Priority



Parameter / Model SSH-3.5kW | 25.6V 200Ah SSH-6kW | 51.2V 200Ah SSH-11kW | 51.2V 314Ah
🔋 System Data
Nominal Output Power 3500W 6200W 11000W
Rated Energy Capacity 5.12 kWh 10.24 kWh 16.08 kWh
Cell Chemistry LiFePO₄ (Lithium Iron Phosphate)
IP Protection IP21 (Indoor Rated)
Standard Warranty 2 Years (Extended optional)
☀️ Solar Input Data
Max. PV Array Power 5500W 8500W 17000W
Max. DC Voltage (Voc) 500 VDC
MPPT Voltage Range 60 ~ 500 VDC
MPPT Tracker / Strings 1 2
Max. Solar Charge Current 120 A
Max. AC Charge Current 100 A
Max. Total Charge Current 120 A (PV + AC)
🔄 Inverter & Controller Data
Rated Power (VA/W) 3500 VA / 3500W 6200 VA / 6200W 11000 VA / 11000W
Peak Efficiency Up to 93.5%
Grid Voltage / Range 230 VAC ± 5% (Adaptive)
Output Frequency 50Hz / 60Hz (Auto-sensing)
Output Waveform Pure Sine Wave (THD < 3%)
Transfer Time (UPS mode) 10ms (PCs) / 20ms (Home Appliances)
Surge Power (Peak) 10000 VA (for 20ms)
🔋 Battery Data (LiFePO₄)
Nominal Voltage 25.6 V 51.2 V 51.2 V
Rated Capacity (Ah) 200 Ah 314 Ah
Max. Charging / Discharging Current 200 A 314 A
Battery Cycle Life ≥ 3000 cycles @ 80% DoD
SOC Estimation / Intelligent Balance ✔ Yes (Smart BMS)
GPS Tracking & Remote Wake-up ✔ Standard on all models
🛡️ Protection & Safety
Arc Fault Protection (AFCI) Yes (Optional add-on)
Anti-reverse / Anti-islanding ✔ Integrated
DC Over Current / Insulation Monitoring ✔ Yes
Residual Current Protection (RCD) ✔ Type A (30mA)
Additional Protections AC Over Current, AC Over Voltage, Overtemperature, Short Circuit
📦 General Data
Communication Interfaces RS232 / RS485 / CAN (BMS link)
Operating Temperature Charging: 0°C ~ 50°C | Discharging: -15°C ~ 60°C
Dimensions (W × D × H) 1055 × 665 × 340 mm (41.5" × 26.2" × 13.4")
Net Weight (approx.) ~78 kg ~96 kg ~128 kg
Safety & Compliance CE, UN38.3, MSDS, IEC 62619 (battery)
