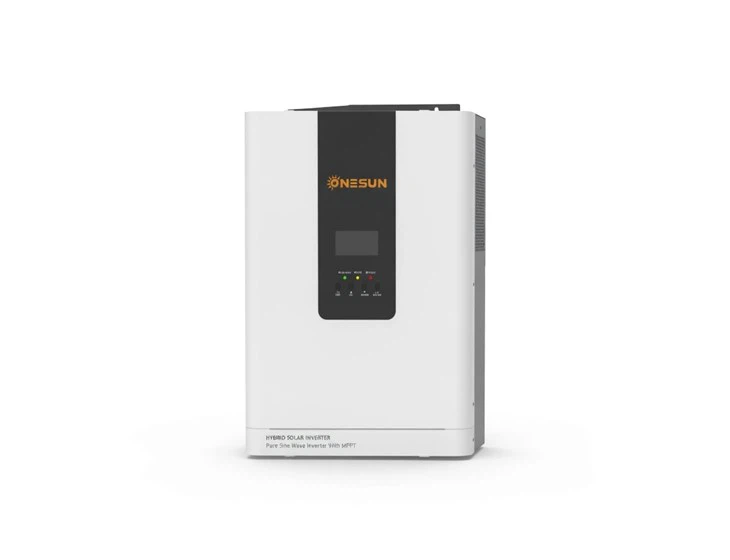

SIF 8 KW Low Frequency Off-grid Inverter
The SIF series products are mainly made of power electronic components rather than software, resulting in high weight, stability, and durability with built-in MPPT. The SIF series is equipped with a built-in transformer, which stabilizes the output voltage and can reach a peak power of up to 3 times. It has strong load capacity and strong resistance to current surges. Very suitable for single-phase power environments such as unstable electricity, households, schools, hospitals, shops, farms, factories, etc. And adapt to loads with high instantaneous power, such as water pumps, presses, stamping machines, pumping machines, compressors, and hydraulic presses..
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Features
ØPure sine wave output
ØHybrid input: PV, battery, grid, generator
ØThree working modes: photovoltaic priority, utility priority, and battery priority
ØInput Voltage: 220V~230VAC(standard), 100VAC(customized)
ØFrequency: 50Hz/60Hz
ØPower factor: 0.8
ØWarranty: 2 Years
ØMPPT Input Voltage Range: 120V~500VDC
ØIngress Protection Rating: IP21
ØMust Work With Battery
ØThe conformal coating is available to protect the circuit board from the erosion of the harsh environment, thereby improving and extending the service life of the machine and ensuring the safety and reliability of use.
| Model | SIF-1KW | SIF-1.5KW | SIF-2KW | SIF-3KW | SIF-4KW | SIF-5KW | SIF-6KW | SIF-10KW | SIF-12.5KW | |
| Input Data | ||||||||||
| Rated Power | 1000VA | 1500VA | 2000VA | 3000W | 4000W | 5000W | 6000W | 10000W | 12500W | |
| Rated Input Voltage | 220VAC (Standard) / 110VAC( Customized) | |||||||||
| Input Voltage Range | For 220VAC: 154V ~264VAC ± 3V (Normal Mode) / 185V ~264VAC ± 3V (UPS Mode) For 110VAC: 77V ~ 132VAC ± 3V (Normal Mode) / 92V ~ 132VAC ± 3V (UPS Mode) |
|||||||||
| Input Frequency | 50Hz / 60Hz ± 5% | |||||||||
| Max. PV Array Power | 12V:800W 24V:1600W | 24V:3200W 48V:6400w | ||||||||
| PV Input Voltage Range (MPPT / PWM) |
12V:PWM 15V-50VDC 24V:PWM 30V-105VDC |
24V ·MPPT 30V-150VDC 48V:MPPT 60V-150VDC |
||||||||
| Optimum Operating Voltage Range (Vmp) |
12V:PWM 50VDC 24V:PWM 105VDC |
24V:MPPT 150VDC 48V:MPPT 150VDC |
||||||||
| Max. Solar Charging Current | 60A | 120A | ||||||||
| Max. AC Charging Current | 19A | 29A | 19A | 30A | 24A | 24A | 29A | 48A | 60A | |
| Transfer Time | ≤10ms( UPS Mode) / ≤20ms (INV Mode) | |||||||||
| Output Data | ||||||||||
| Output Power | 800W | 1200W | 1600W | 2400W | 3200W | 4000W | 4800W | 8000W | 10000W | |
| Output Power Factor | PF≈0.8 | |||||||||
| Rated Output Voltage | 220VAC±10% ( 110VAC±10%) | |||||||||
| Rated Output Frequency | 50Hz / 60Hz ± 1% | |||||||||
| MPPT Efficiency | >98% | |||||||||
| Efficiency(AC Charging) | >98% | |||||||||
| Efficiency(Battery Mode) | 88% ~89% | |||||||||
| Battery Data | ||||||||||
| Battery Type | Lead-acid / Water / LiFePO4 | |||||||||
| Battery voltage | 12VDC | 12/24VDC | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC | |
| Battery charging voltage | 13.7VDC | 13.7/27.4VDC | 13.7VDC | 27.4VDC | 27.4VDC | 54.8VDC | 54.8VDC | 54.8VDC | 54.8VDC | |
| General Data | ||||||||||
| Peak Load Ratio | 3:1 (MAX) | |||||||||
| Standby Power Consumption | 12V: 8W / 24V: 16W | 24V: 16W / 48V: 32W | ||||||||
| Protection | AC: Input Overcurrent Protection with No-fuse Breaker;INV: Overload Protection,Short-circuit Protection, Low-voltage Protection, Reverse Battery Protection (Fuse) |
|||||||||
| LED Display & Voice Alarm | To display mains supply, charging status, inverter status, fault status. The buzzer emits alarms of different length according to different fault codes. |
|||||||||
| Operating Temperature | 0℃ ~40℃ | |||||||||
| Storage Temperature | -15℃ ~45℃ | |||||||||
| Relative Humidity | 10% ~90% (Non-condensing) | |||||||||
| Noise | ≤45dB | |||||||||
| Dimensions (W*D*H) | 125*312*490mm 345*254*105MM(Packaged) |
400*200*545mm 545 ×400 ×200MM (Packaged) |
||||||||
| Standard | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | |||||||||
