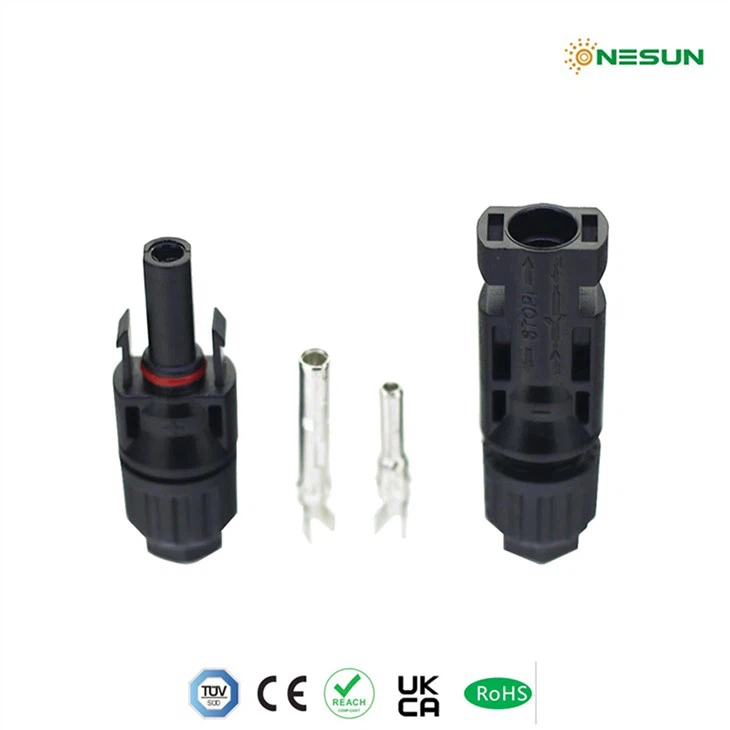

PPO Material PV Connector
ONESUN PPO Material PV Connector The casing of the photovoltaic module connector is mainly made of PC polycarbonate material or other similar modified materials, and the internal terminal is made of copper material.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description
Photovoltaic Connector The casing of the photovoltaic module connector is mainly made of PC polycarbonate material or other similar modified materials, and the internal terminal is made of copper material. It is the components, combiner box, diode, controller and It is a key part of the interconnection between various components such as inverters.
Features
Material：PC for body + copper tinned plating for conductor (hollow)
Specification：1000V, MC4 connectors for cable (1 male+1 female as a set)
Certificate：CE/ROHS
With excellent aging resistance and UV endurance, can used in severe environment

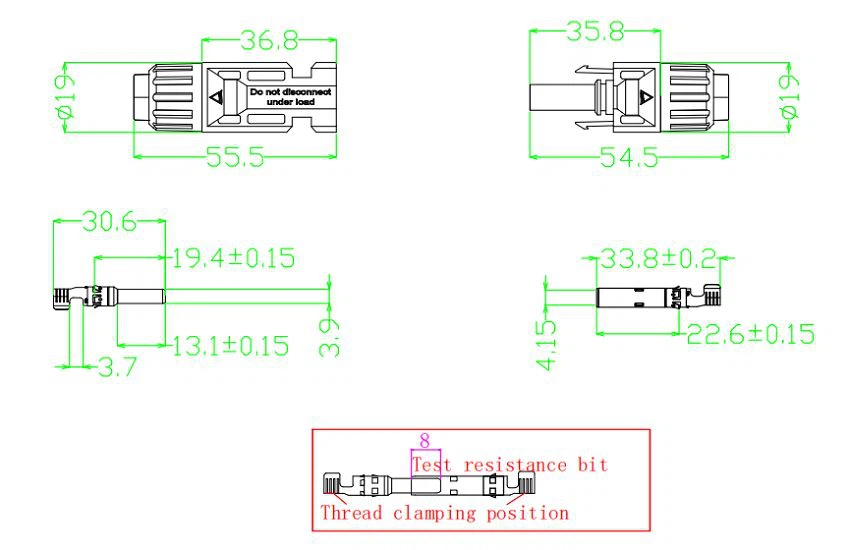

Product Dimensions
No back loop
With stop ring
Parameters
|
Product Name |
ONESUN PV-MC(WG) |
ONESUN PV-MC(WG2) |
|
Rated voltage |
1000V |
|
|
Insulation material |
PC |
|
|
Conductor material |
Copper tin-plated |
|
|
Ambient temperature |
-40℃~+95℃ |
|
|
Product temperature |
-40℃~+135℃ |
|
|
Security class |
DCII |
|
|
Waterproof grade |
IP67 |
|
|
Contact resistance |
≤0.35mΩ |
|
|
Connection system |
Multi-point connection |
|
|
Self-locking system |
Embedded |
|
|
Wiring method |
Crimping |
|
|
Wiring specifications |
2.5mm²、4mm²、6mm² |
2.5mm²、4mm²、6mm² |
|
Rated current |
1.5mm²: 17A |
1.5mm²: 17A |
|
Flame retardant rating |
UL94-VO |
|
Application scenarios
Outdoor
Street lightProduction Dispaly
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a national-level high-tech enterprise that is dominated by photovoltaic inverters and photovoltaic energy storage, integrating diversification, R&D and manufacturing, and has our own factory.
Q: Where can I buy ONESUN PV connector?
A: You can contact ONESUN customer service from www.onesunpv.com
Q: How is your customer service?
A: All products will be strictly tested before leaving the factory, and the defective rate is less than 0.1%. We do our best to provide good customer service.
Q: What kind of certificates do you have for your PV connector?
A: Our PV connector have obtained CE/ROHS/TUV certificates.
