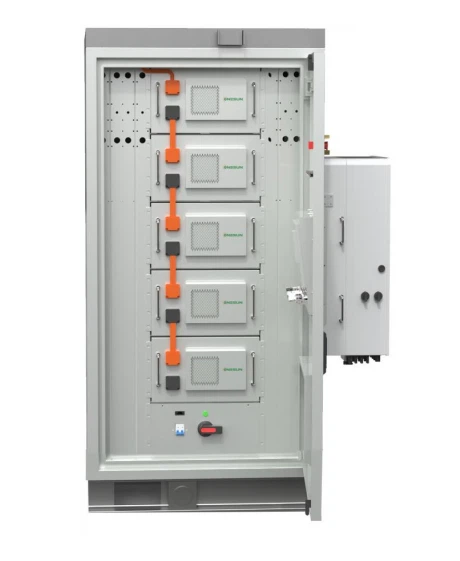

Mini Grid Solar System Smart ESS Cabinet
Industrial and commercial energy storage systems are energy storage solutions designed for enterprises, factories, commercial buildings, etc. ONESUN considers the placement of large energy storage equipment for customer enterprises and specially launches mini grid power systems that are more convenient for outdoor placement.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
CAO-50KW 100KWH
Industrial and commercial energy storage systems are energy storage solutions designed for enterprises, factories, commercial buildings, etc. ONESUN considers the placement of large energy storage equipment for customer enterprises and specially launches mini grid power systems that are more convenient for outdoor placement.
1. 1.67 Times PV Power,high efficiency 4 MPPTs, 8 Strings with 20A PV input current,efficiency up to 99.9% ; System efficiency ≥95% with stable energy conversion
2. Diverse Modes Cold start, Off-grid, Economic mode. Generator access, Remote maintenance in real time
3. Modular Scalability Flexible architecture with expandable components for future upgrades.
4. Inverter all-Silicon Carbide Structure High-efficiency operation, improves energy conversion efficiency and equipment stability
5. Inverter IP66 Protection Ensure the reliable operation of the equipment in harsh industrial and commercial environments
6. Easy Maintenance Modular battery design for easy replacement; automated operation with remote diagnostics.
7. Advanced Safety Protections Multi-layer safeguards: thermal/voltage/current/leakage monitoring, lithium-specific thermal management, fire suppression, and lightning protection.
| Model | CAO-50KW100KWH |
| PV Data | |
| Max. PV Array Power | 100 kW |
| Max. DC Voltage | 1000VDC |
| MPPT Voltage Range | 150~950VDC |
| Start-up Voltage | 125VDC |
| Max. Input Current / Sring | 8*20ADC |
| Isc PV (Absolute Maximum) / Sring | 8*30ADC |
| No.of MPPT Tracker / Strings | 4/2+2+2+2 |
| Battery Data | |
| Cell Type | LiFePO4 |
| Nominal Capacity | 314AH |
| Charge Ratio | 0.5C |
| Energy | 100.5kWh |
| Nominal Voltage | 320V |
| Voltage Range | 304-336V |
| Inverter Input/output(Grid) | |
| Rated Power AC Side (output) | 50KW |
| Rated Power AC Side (input) | 138kW |
| Rated Voltage | 380/400VAC, 50/60Hz |
| Switch Time | <20mS |
| Max. Continuous Current (input/output) | 200A/ 80A |
| Max. Output Overcurrent Current Protection | 108A |
| AC OUTPUT | |
| Rated Output Voltage | 380/400VAC,3W+N+PE 50/60Hz |
| Rated Output Active Power | 50kW |
| Rated Output Apparent Power | 50kVA |
| Rated Output Current | 72A |
| Overload Capacity (off grid) | 110% 30S/120% 10S/ 150% 0.2S |
| Functional Features | |
| Insulation Monitoring | Yes |
| Residual Current Monitoring | Yes |
| Residual Current (RCD) Detection | Yes |
| Earth Fault Detection | Yes |
| Ground Fault Current Monitoring | Yes |
| MPPT Efficiency | 99.90% |
| Euro / Max. Efficiency | 97.5%/ 98.5% |
| Display | LED+APP |
| Charge Equalization Function | YES |
| System Data | |
| Communication Interface | RS485/WiFi/CAN/DRM(Optional:Bluetooth/LAN/Meter) |
| System Communication Protocol | Standard: Modbus (Optional) |
| Protection Function | Over-Charge, Over-Discharge, Over-Current, Short-Circuit, Over-Voltage,Under-Voltage, Over-High/Low Temperature |
| Enclosure Protection Rating | IP65 |
| Operating Temperature | Charging: 0℃~60℃ ; Discharging: -20℃~60℃ |
| Storage Temperature | -30℃~60℃ |
| Storage Humidity | ≤100% RH |
| Cycle Life | ≥8000 Cycles@80%DOD & 0.5C,25℃ |
| Life Time | 10 Year |
| Anti-Corrosion Grade | C4 |
| Battery Temperature Control Method | Industrial Grade Air Conditioning |
| Cooling | Air Cooling |
| Firefighting Program | Pack Aerosol + Sevoflurane + Water Fire Interface |
| DIESEL GENERATOR AUTO Control System | YES |
| Lighting Protection | YES |
| Smoke Detector | Optional |
| Fire Extinguish System | YES |
| Fire Sprinkler System | YES |
| Assembly Style | Rack Style (Inverter side hanging) |
| Cloud Monitoring Platform | YES |
| Thermal Management AC | YES |

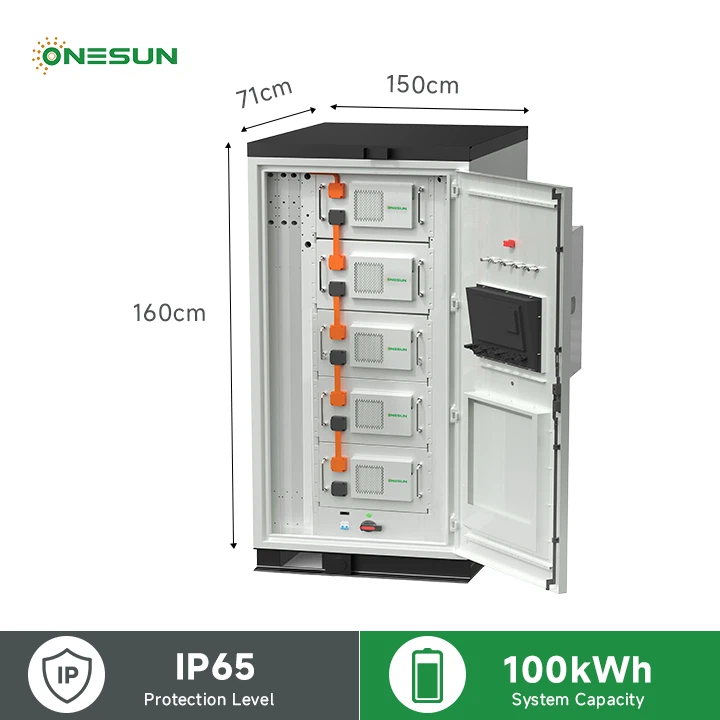

| Size | 1600*710*1500mm |
| Weight | Approx.1.1t |
| Certification | CE-EMC,UN38.3, CEI 0-21, EN50549-1, VDE-AR-N4105, UNE 217002, NTSTYPEA, G99, AS/NZS4777.2 |
