Solar Energy Solutions
The home solar system kit is Single phase hight voltage solar energy solutions.The solution includes solar panels,ip65 6kw inverter,high voltage lithium battery+PV Cable and a set of accessories.For details, see the parameter table.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description

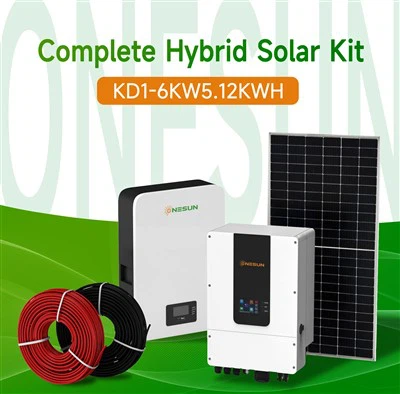

The hybrid solar energy kit includes solar panels+6KW single phase inverter(IP65)+ grade A high voltage battery 200V-400V100ah+ of PV cable+set of accessories. We all of our batteries are grade A. Our energy storage system can work normally even in severe environment,such as vibration status, wide temperature, etc.
Parameters
| Product Name | Model no. | Specifications | Warranty |
| solar panels | SUNIZE 410P-108M SUNIZE 460P-120M SUNIZE 550P- 144M |
①410W ②460W ③550W |
10 Years |
| Hybrid Inverter | SHHV-6KW | Single Phase Solar Inverter 6kw IP65 | 5 Years |
| Battery | HB200-400V100AH | high voltage battery200-400V（optional） | 10/15 Years |
| Accessories | PV1-F1*6mm² | PV Cable, MC4 connector, fuse, diode etc | 10 Years |
410W/460W/550W Solar Panel
| Rated Power: 410W/460W/550W | Solar Cell: Monocrystalline |
| Structure: 3.2 Highly permeable coated toughened glass +EVA film + white back panel |
Open Circuit Voltage(Voc): 37.23V/41.4V/49.95V |
| Short circuit current: 11.16A/11.12A/11.17A | Maximum current: 13.08A/13.05A/13.11A |
| Maximum System Voltage:DC 1500V | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| connector:MC4 | Temperature range: －40℃～ +85℃ |
| Frame: anodized aluminum alloy | Fire rating:Glass C |
| Size of extension cable: 4mm² | Maximum power Pmax/W:309/343/414 |
Hybrid Inverter(6KW) IP65 High Voltage
|
Intelligent switching Support emergency power supply, and seamless off-grid switching; |
Wide voltage input Ultra -wide PV voltage range 85V -600V, battery ultra -wide voltage range 85V -450V: |
| Solar Charge Mode: MPPT | Max output current：26A |
| Max Power: 9000W | DimensionsWxDxH:390*192*407 |
| PPT voltage range：80-500V | Battery voltage range：85-450V |
| Nominal output frequency:50HZ/60HZ | Efficiency(peak):95% |
200V-400V LiFePO4 Lithium Battery
| Battery Capacity: 100ah | Over Current Protection:120A |
| Battery Voltage: 200-400V | Maximum Charge/ Discharge Current: 100A |
| Charge Temperature Range: 0-50℃ | Disharge Temperature Range:﹣15－60℃ |
| Battery Weight: 245kg-380kg | Protection function：ocvp/uvp/ocp/scp etc./otp |
| Communication type:RS485/CAN | Over current protection:120A |
Product Dispaly
